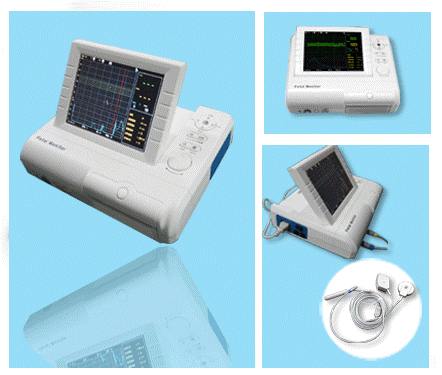

DOPCMS800G FETAL MONITOR POP UP SCREEN - CMS800G
- Light weight, space-saving, easy to use
- 8.4” LCD screen, folding 60 degree
- Display waveforms and digitals simultaneously
- FHR 120-160 normal area highlight
- 12 hours data and waveform storage and review
- FHR upper and lower limit alarm
- Twins monitoring function option
- High sensitive 9 Elements 1 MHZ Pulse Doppler transducer
- Built-in PC Network can be connected to the central monitoring system
| MODEL: | FETAL MONITOR CMS 800G |
| Display | 8.4” colour LCD display, 60 degree folding |
|
Recorder: Record paper: Printing Width: Effective printing width: Printing speed: Record message: |
Thermal printer Z-fold, thermal paper 112mm 104mm 1,2,3cm/min Data, time, TOCO Trend graph, paper speed, FHR type, FHR Trend graph etc |
| Signal interface | RJ 45 interface |
|
FHR Technique: Ultrasound Frequency: |
Ultrasound pulse Doppler and auto correlation 1MHz |
| FHR range: | 50-210bpm |
| Resolution | 1bpm |
| Accuracy: | ± 2bpm |
|
TOCO Range Resolution Non-linear Error Zero control |
0-100% 1% ≤±10% Manual |
| Fetal movement | Manual fetal movement mark |
| Power Supply |
AC 100-240v, 50/60Hz P max=60VA |
| Dimensions | 320mm x 260mm x 80mm |
| Weight | 3.2kg |
| Quality Standard | CE |
Accessories listing |
Transducers(Ultrasound TransducerⅠ, TOCO Transducer, Remote Marker); Ultrasound TransducerⅡ(Optional); Abdomen belt; Record Paper; Power supply line; Earth line; Two Fuses; User manual. |
