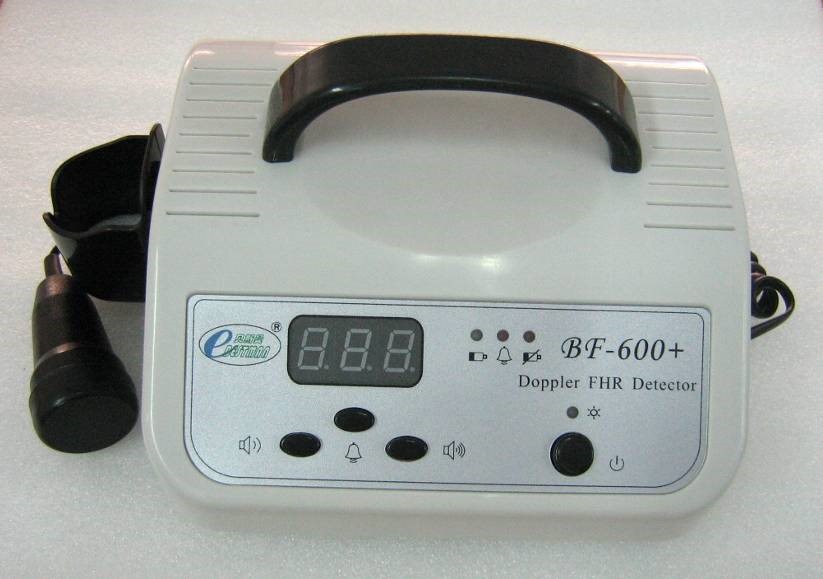

DOPBF600+ FOETAL DOPPLER BF 600+
FUNCTION :
- Displays Foetal Heart Rate with LED
- On-Off music function and sound alarm of the FHR when out of range
- Automatic Turn off Function
- For use from 12 weeks to full-term pregnancy
- Aesthetically pleasing
- Portable
- Simple to operate
- Alarm signal on irregular heartbeat
- Volume control
- Fast and accurate
- Red LED display
- Earphone Jack
| MODEL: | BF 600+ Portable Foetal Doppler |
| Overall Dimensions | 340mm (L) x 250mm (W) x 170mm (H) |
| Weight | Net 1. : Gross 2.6kg |
| Power | 14.4V rechargeable battery |
| Ultrasonic Frequency | 2MHz + 10% |
| Doppler frequency | 0-8KHz |
| Input power | ≤ 20VA |
| Output power | ≤10mW/cm2 |
| Overall Sensitivity | ≥ 90dB |
| Inside Audio output power | ≥ 1.8W |
| Target velocity and display range | 60-210bpm (±2pbm) |
| Coupling medium impedance | 1.5-1.6 (105g/cm2.s) |
| Spatial-peak temp-peak acoustic pressure | ≤ 0.1MPa |
| Effective area of transducer | 3.0 ± 0.5cm2 |
| Adapter input voltage | 230V AC |
| Battery | 14.4V Ni-HM rechargeable battery |
| Continuous working time | ≥ 4 hours |
| Environment temperature | 10-40°C |
| Quality Standard | CE |
